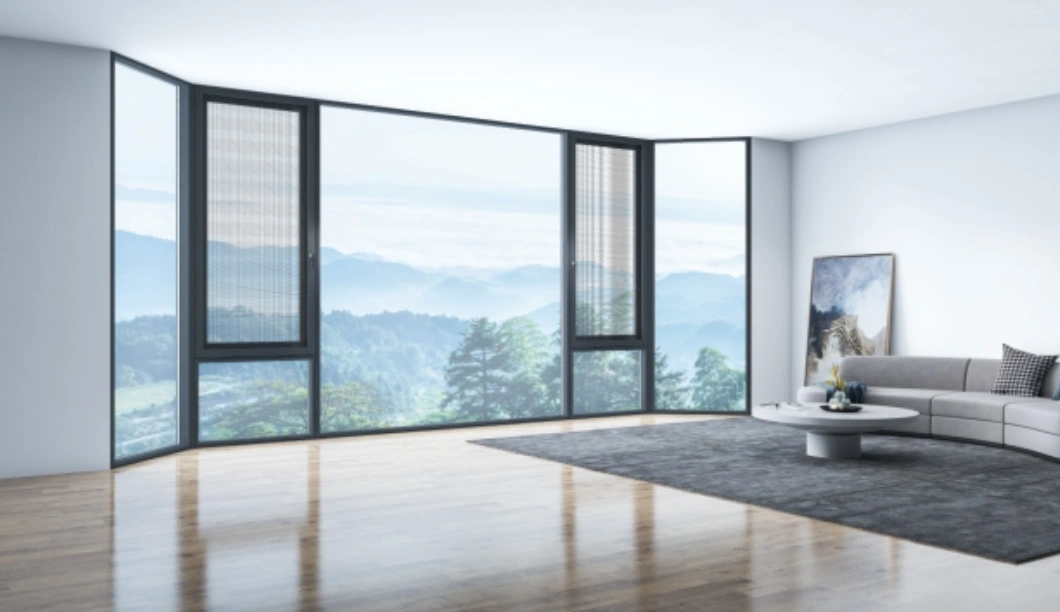

YASHANG KANATLI PENCERE SERISI
Dışarıdan yukarı askı sistemi ile açılan, yüksek sızdırmazlık ve enerji verimliliği sağlayan premium kanatlı pencere serisi.
Kategori:
Kanatlı Pencere Serileri
Profile Spec:
6063-T5 primary aluminum (110A series, main wall thickness 1.8 mm)
hardware:
ysun hardware
Open method:
External Upper Suspension
Hollow aluminum strip:
standard silver aluminum strip
Sealing strip:
PA66 high-performance heat insulation strip
Optional color:
Outdoors: Modern Gray, Silk Mist Coffee • Interior: Modern Gray, Agate Black, Milk Coffee Gray
Glass Configuration:
Standard 5 white + 20A + 5 white dual steel special grade
, (optional upgrade) 6 white + 18 A + 6 white double steel premium grade
, (optional upgrade) 8 white + 14 A + 8 white double steel premium grade
, (optional upgrade) Arc press line 5 white + 24A + 5 white double steel special grade
Customize cycle:
20-30 days
Silk Fan:
Double-sided adhesive tape with high-transparency diamond mesh
Single-panel spec:
Window (width) maximum 700mm, Door (single panel) 900mmx2300mm
Product Features:
Beveled edge creasing, narrow frame, inner and outer flush frame design • Silent operation, energy efficiency
Minimum chargeable area:
Areas under 1.5㎡ per panel will be charged as 1.5㎡
Applicable scenarios:
Balcony window enclosures, bedrooms, study rooms, kitchens, offices, and various other settings
