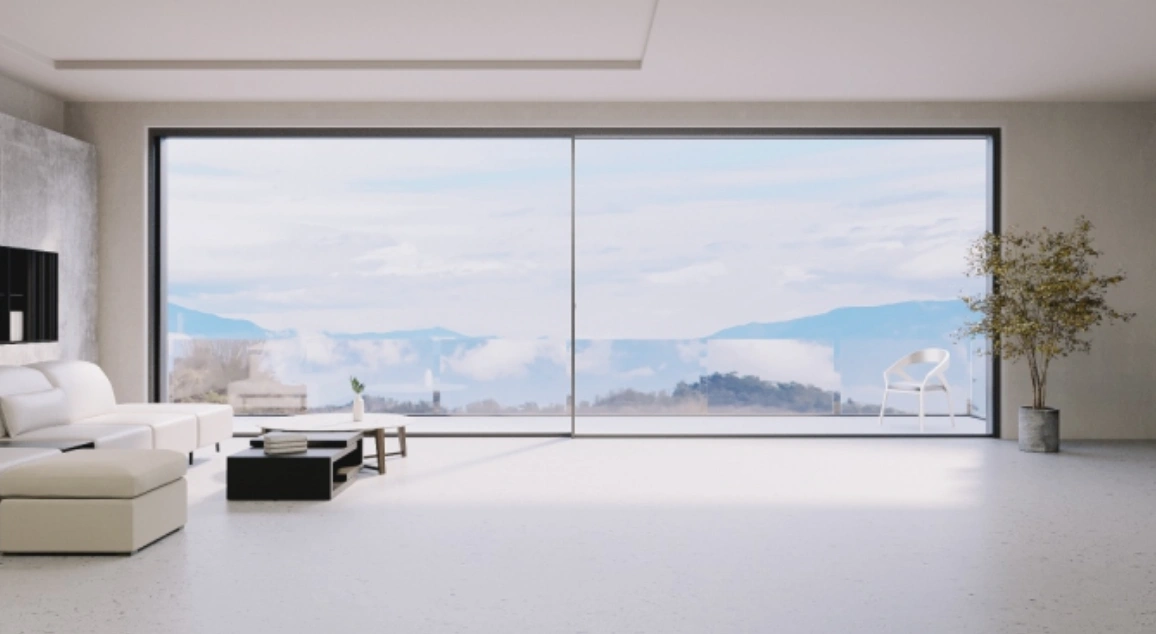

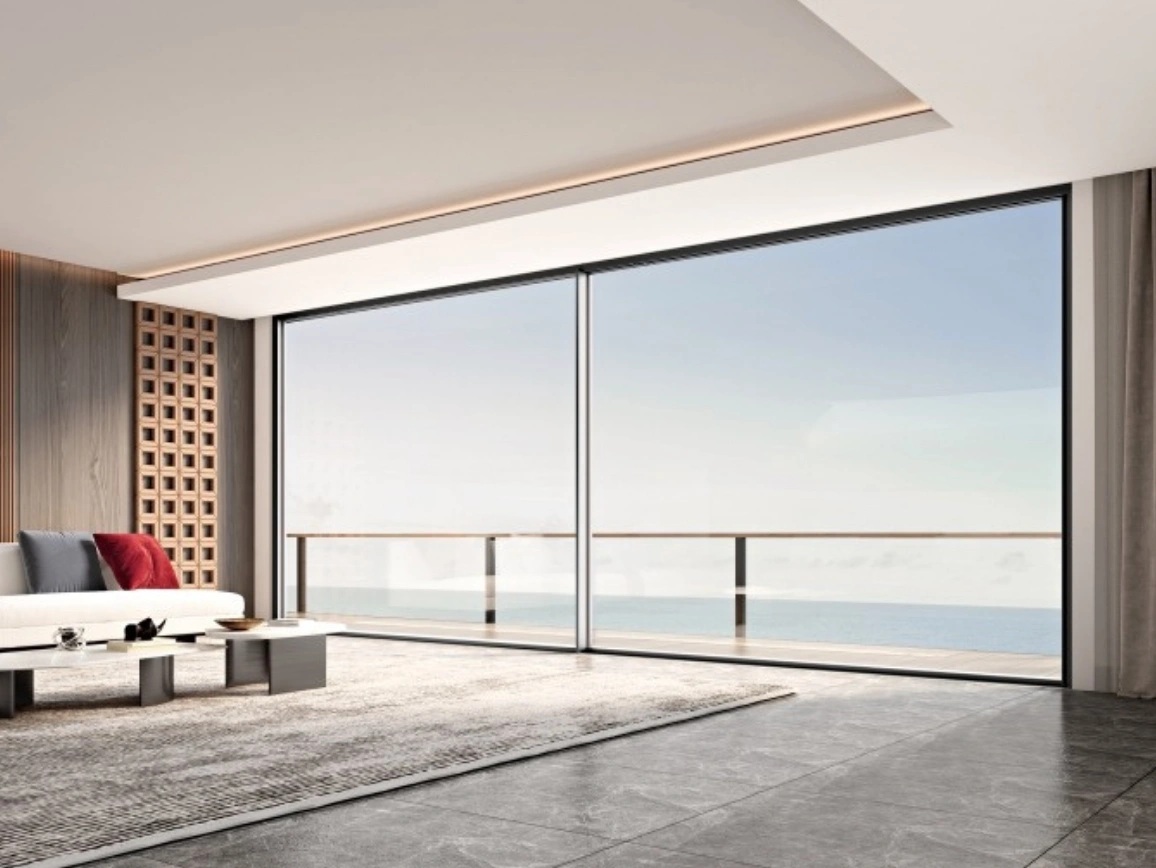

PANORAMIK KAYAN KAPI
Geniş açılır paneller ile doğal ışık ve manzara için özel olarak geliştirilmiş panoramik kayan kapı sistemi.
Kategori:
Kapı Serileri
Open method:
push-and-pull
Customize cycle:
20-30 days
hardware:
Standard Hetu Hardware
Profile Spec:
Wall thickness: 3.0 mm Frame: 150*42mm
Optional color:
Interior: Fluorocarbon Galaxy Gray, Pearl Black • Outdoor: Fluorocarbon Galaxy Gray, Pearl Black
Applicable scenarios:
balcony, bedroom, study, office and other scenarios
Railway:
The three-track yarn track is not a single track, The gate features two tracks plus an additional track, with the option to install electric tracks.
Glass Configuration:
5 mm+24A+5 mm double white tempered
, 6 mm+22A+6 mm double white tempered steel (optional)
, 8mm+20A+8mm double white tempered steel (optional)
, 10mm+15A+10mm double white tempered (optional)
Sliding fan dimensions:
Single-panel size: Height <7m. If the track length exceeds 6.8m, customization is required
Minimum pricing area:
less than 1.5 square meters per panel is priced at 1.5 square meters.
Package:
Single or double package • 1. The minimum wall thickness of two-track single package is ≥ 154mm, the minimum wall thickness of three-track single package is ≥240mm; the minimum wall thickness of two-track double package is ≥158mm, the minimum wall thickness of three-track double package is ≥250mm; • 2. Wall with edge cover:74mm; • 3. A single-door package can only be used for outsourcing
