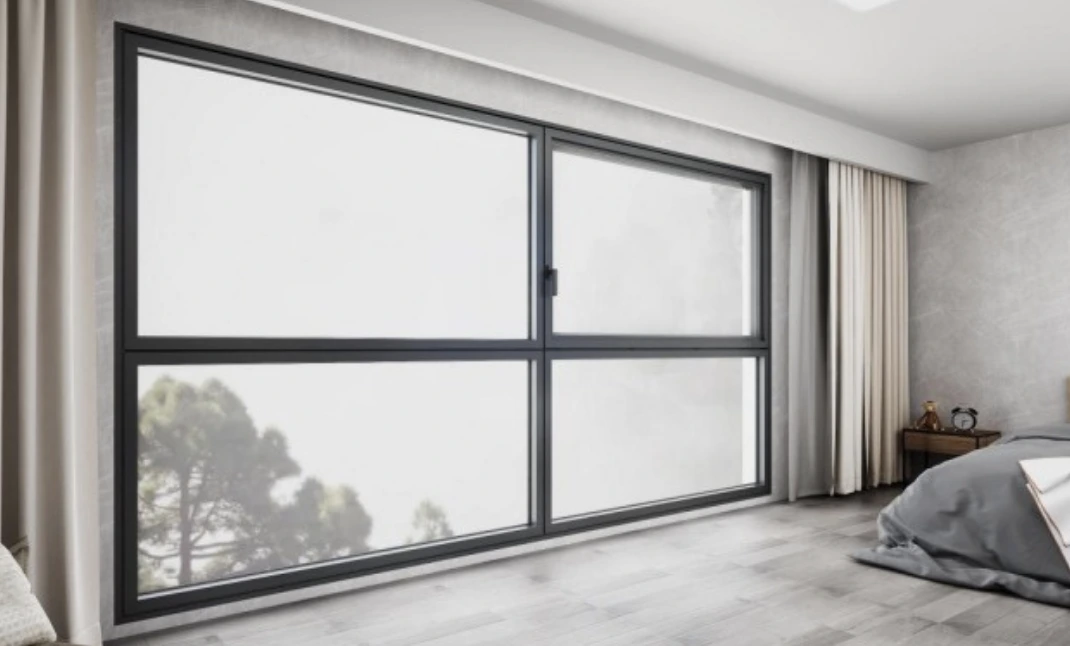

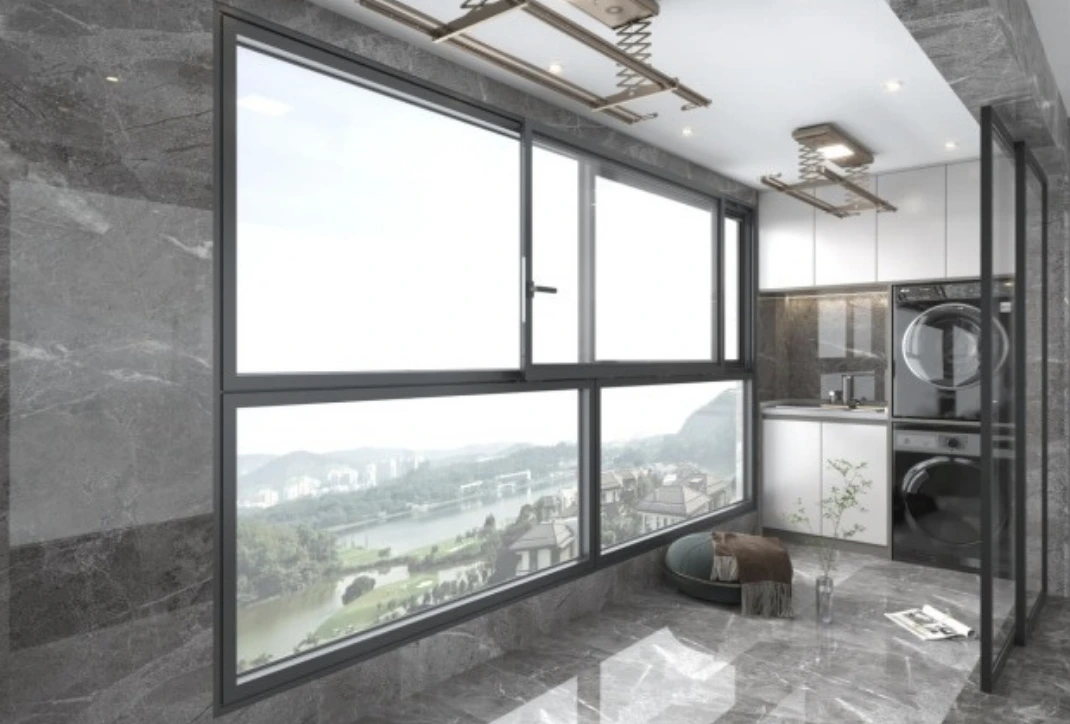

JINGSHANG DRIFT PENCERE SERISI
İçeri doğru eğilerek açılan sürgülü sistem ile temizlik ve havalandırma kolaylığı sağlayan yenilikçi drift pencere serisi.
Kategori:
Kayan Pencere Serileri
Customize cycle:
20-30 days
Open method:
Inward-tilting Sliding
Hollow aluminum strip:
standard black aluminum strip
Optional color:
Outdoors: Metallic coffee, metallic gray • Interior: metallic gray, black gold
Energy-saving features:
PA66 High-performance Insulation Strip
Profile Spec:
Wall thickness: 1.8 mm Frame: 86*18 mm
Sliding fan dimensions:
width 600mm-850mm, height 900-1700mm
Glass pane:
visible surface 56mm indoor thickness 67 mm
hardware:
Standard configuration with Meishilong accessories, Optek handle
Minimum chargeable area:
Fixed windows with an area less than 2 square meters will be charged as 2 square meters.
Window pane:
Fan width ≥550mm;Standard configuration includes two sets of rollers for window sashes under 1㎡; Window sashes between 1-1.5㎡ require one additional set of rollers; Window sashes between 1.5-2㎡ require two additional sets of rollers.
Applicable scenarios:
Balcony window enclosures, bedrooms, study rooms, kitchens, offices, and various other settings
Glass Configuration:
Standard configuration: 5 mm+20 A+ 5 mm double white tempered glass
, (optional upgrade); 6 mm+18A+6 mm double white tempered glass
, Optional: 8mm+14A+8mm double white tempered
